Diseñadas para aplicaciones intensivas y entornos difíciles en los que normalmente harían falta máquinas con motor térmico, estas potentes carretillas eléctricas de alta capacidad ofrecen una alternativa limpia y extremadamente eficiente.

Con gran potencia y eficiencia, pero sin emisiones, esta gama aumenta al máximo todas las ventajas eléctricas. Disfrute de una comodidad silenciosa y un rendimiento más ágil, seguro y rápido, reduciendo los costes operativos generales.

Estas carretillas eléctricas de gran capacidad son perfectas tanto para exteriores como para interiores y pueden utilizar una gran variedad de accesorios pesados. En esta gama de modelos, capacidades, tamaños de chasis y opciones de carretillas eléctricas de gran capacidad encontrará sin duda una configuración que se adapte perfectamente a sus necesidades.

Las cero emisiones de estos modelos de carretillas contrapesadas respetuosas con el medio ambiente son una excelente razón para cambiar de las carretillas contrapesadas de motor de combustión interna a las carretillas eléctricas. Diseñadas para aplicaciones exigentes tanto en interiores como en exteriores, ofrecen un rendimiento y una potencia insuperables. Además, son energéticamente más eficientes, y mucho más silenciosas, que cualquier otra carretilla de su clase. Dicha eficiencia, unida a la gran durabilidad, los diagnósticos mediante conexión y la facilidad de mantenimiento, proporcionan un coste total de explotación menor y un valor residual mayor.

Aplicaciones típicas:

  • Fabricación y venta mayorista de alimentos y bebidas
  • Papel y celulosa
  • Aserraderos
  • Industria del mueble
  • Acerías y fundiciones
  • Puertos
  • Fabricación y venta mayorista de alfombras
  • Industria química, textil y del caucho
  • Maquinaria y equipos pesados
  • Plantas de montaje de automóviles
  • Construcción
  • Distribución y logística
  • Automoción
  • Producción
  • Procesamiento
  • Reciclaje de papel
  • Industria embotelladora
  • Cemento
  • Producción metalúrgica
  • Almacenes de construcción
  • Madera

Su agilidad excepcional proporciona a los conductores la sensación de que conducen una carretilla elevadora mucho más pequeña. La asistencia dinámica incluye la dirección a las cuatro ruedas OmniTurn, el sistema RDS (Responsive Drive System) y el control de curvas inteligente. PowerBurst aporta aceleración adicional o par de ascenso cuando es necesario, mientras que el bloqueo eléctrico del diferencial es especialmente útil en superficies resbaladizas. La manipulación de materiales se realiza de manera más suave, rápida, segura y precisa gracias a SmoothFlow y a otras tecnologías hidráulicas que optimizan los movimientos del mástil y las horquillas en función del peso de la carga y de la altura de elevación. Las palancas de control táctil suaves y reactivas o los joysticks ofrecen un control sin esfuerzo.

Las bombas hidráulicas SilentRun+ y los módulos de accionamiento silenciosos líderes del mercado, junto con un compartimento del operador espacioso, flotante, sin vibraciones, amplio y despejado, proporcionan comodidad sin estrés a los conductores. Tanto las cabinas cerradas como las abiertas proporcionan una visibilidad panorámica sin obstáculos ni necesidad de apoyos. El equipamiento de serie cuenta con un diseño ergonómico y está ampliamente especificado. El asiento, la columna de dirección y la unidad de control hidráulico en el reposabrazos se adaptan a todo tipo de usuarios. Entre las funciones opcionales de estas carretillas elevadoras se incluye Palm Steering para un funcionamiento más relajado. También existen cabinas resistentes al agua con comodidades adicionales, como aire acondicionado, ventilación direccionable y calefacción.

  • Best-in-class energy efficiency extends working hours (runtime) per battery charge.
  • ECO mode can be selected to lower electricity bills.
  • Li-ion battery option adds even greater efficiency and runtime, along with minimal maintenance needs and much longer life, for lower longterm total cost of operation (TCO).
  • Easy access to battery compartment enables quick on-truck servicing and sideways exchange.
  • Battery inspection hatch option allows fast checking and water top-ups for lead-acid batteries.
  • Multi-function display encourages correct use and maintenance of truck.
  • Simple plug-in diagnostics and troubleshooting reduce downtime and maintain efficient performance.
  • Robust construction reduces repair and replacement needs and helps maintain truck’s high residual value.

  • PowerBurst automatically delivers extra torque to maintain ramp speed or provide strong acceleration, even when carrying heavy loads.
  • Responsive Drive System (RDS) adapts performance rapidly in reaction to speed of pedal and hydraulic control operation, and ensures all movements, stops and starts are smooth.
  • OmniTurn all-wheel steering offers better grip, smoother turning and unbeatably agile manoeuvring, aided by a +100° rear turning axle which enables instant side turns with no initial backward movement.
  • Electric differential lock maximises grip on slippery surfaces by locking front wheels to increase traction (activated automatically at small steering angles or manually via an optional pedal function).
  • Adaptive steering varies steering ratio and force to optimise comfort,control and stability.
  • Intelligent curve control maximises cornering safety by smoothly adjusting truck speed and minimising side forces.
  • SmoothFlow hydraulic system automatically adjusts to load weight, ensuring fast but smooth and precise control of all mast and fork actions - whether individual or simultaneous.
  • Automatic hydraulic control tuning maintains steady mast and chassis movements when lifting above 2.5 metres*. (*Activation height depends on mast chosen.)
  • Passive sway control allows mast tilting forces to be absorbed by chassis during higher lifts. (Applies mainly above 3.0 metres.)
  • Quick-connect access point simplifies opportunity charging of Li-ion batteries and features automatic ventilation for lead-acid.
  • Li-ion option enhances performance and permits fast opportunity charging for continuous operation without battery changes.
  • Pre-set ECO and PRO modes can be selected for different drivers and tasks, while customised settings (including lifting and lowering) can be applied by service engineers.

  • Market-leading SilentRun+ hydraulic pumps, quiet drive units and other low-noise technologies keep driver comfortable and stressfree, increase awareness of surrounding activity and avoid disturbing neighbours and co-workers.
  • Rubber-mounted operator compartment minimises vibration.
  • Spacious operator compartment offers comfortable, adjustable seat, large, uncluttered floor and plenty of foot room, as well as easy, smooth entry/exit aided by long grab handle and non-slip step.
  • Easy-to-read colour display keeps drivers fully informed.
  • Obstacle-free design gives a clear all-round view of the truck’s surroundings and outer dimensions – from both open and enclosed cabins – with no need to lean.
  • Dark operator compartment materials minimise reflections on inside of windows, for clearer vision.
  • Useful storage spaces include suitable pockets for tools, mobile devices, bottles, tape dispensers and pens.
  • Panel cabin options include acrylic transparent roof, steel doors, windscreen, side and rear windows, and front/rear wipers/washers.
  • Air conditioner option focuses ventilation on footwell and windscreen, and provides additional adjustable front and side vents, for welcome comfort in hot weather – without cold draughts around the neck. (Only with panel cabin.)
  • Heater option keeps driver warm and windows demisted in cold conditions. (Only with panel cabin.)
  • Window options are designed for panoramic vision, ventilation, emergency rear escape, and convenient reach (to operate warehouse door-opening string, for example). (Only with panel cabin.)
  • Panel cabin interior package (optional) includes roof liner, radio, speakers and reading light.
  • Ergonomic steering wheel has a widely adjustable column and a steering knob which automatically returns to the most convenient position after every turn.
  • Palm Steering option offers enhanced forward view, relaxed driving position and operation with minimal effort – ideal if driver is seated for long periods.
  • Spring-force-optimised fingertip hydraulic controls on adjustable, comfortable armrest ensure ergonomically perfect hand positioning, anatomical support and free movement.
  • Dual joystick option separates functions such as clamp opening, to avoid accidental moves, and is especially useful if fingertip levers are too small for operation with gloves (or large hands).
  • Pedal design, position and angles reduce fatigue for drivers of any height or foot size.
  • Safety lights (optional) include red lines, highlighting exclusion boundary around truck, and red or blue spots (front and rear) warning pedestrians of truck’s approach.
  • Working lights include mast-mounted floodlights as standard, as well as optional front and rear driving light clusters and rooftop beacons.
  • Standard safety features include hill hold, automatic park brake and wet disc brakes, for added confidence and control.

  • Key pre-set economy or high performance mode (ECO / PRO)
  • Manual control levers
  • Dual joysticks
  • Palm Steering
  • Air conditioner
  • Heater
  • Integrated Li-ion battery, available in selected regions
  • Lead-acid battery

* For a complete list of options, please contact your nearest dealer.

MODEL CAPACITY (kg) LOAD CENTRE (mm) ENGINE
EP40N 4000 500 Electric
EP45N 4500 500 Electric
EP50CN 4990 500 Electric
EP50N 4990 500 Electric
EP50NH 5000 600 Electric
EP55NH 5500 600 Electric

Imagen:

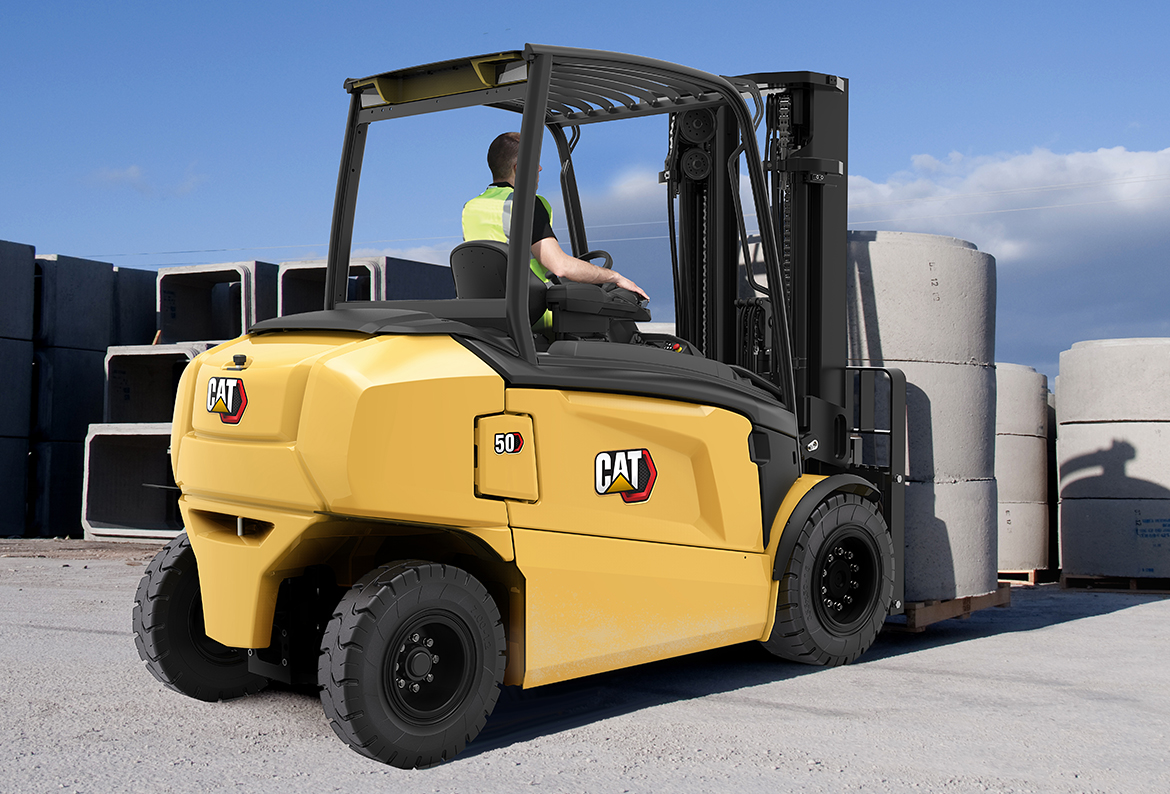

High capacity electric forklift
Imagen:
Cat EP40-55(C)N(H) 80V electric counterbalance
Imagen:
EP40-55CNH high capacity electric forklift
Imagen:
zero pollution in operation EP40-55CNH
Imagen:
energy-efficient – and quiet forklift trucks EP40-55CNH
Imagen:
Cat lift truck driver EP40-55CNH
