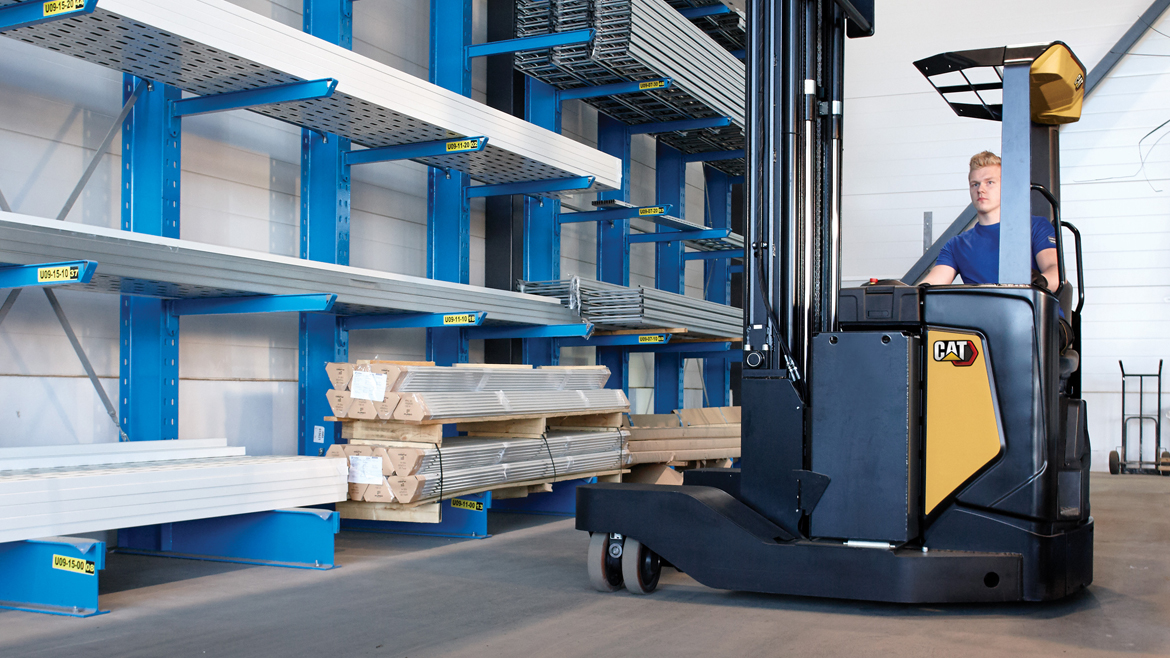

The flexibility of movement offered by the two Cat® Lift Trucks multi-way reach truck models is far superior to that of a four-way truck.
Six modes can be selected: forward/reverse, sideways, diagonal, rotational, agile cornering and automatic transition between normal and lateral. The trucks’ all-wheel synchronised steering combines with a special fork positioner to allow easy mobility and perfect positioning of loads in any situation.
The Cat® Responsive Drive System and other automatic control features ensure all movements are smooth and precise – enhancing user enjoyment, performance and safety. A comfortable cabin with ergonomic controls also helps to maximise driver satisfaction and output. Downtime and repair bills are minimised by durability, quick service access and – via a full-colour display – clear information.
Nominal capacity choice is between 2.0 and 2.5 tonnes, while masts can be selected with maximum heights between 4.8 and 10.0 metres. In addition to a generous standard specification, many optional features can be requested to match the trucks precisely to the user’s needs. Along with general distribution centres, logistics hubs and warehouses, these multi-way reach trucks will increase productivity in specialist industrial sectors including timber, metal and electricity.
- Durable components and quick service access minimise downtime and bills.
- High-strength, single-unit load wheels, with cast instead of welded parts, turn within the chassis to avoid risk of collision damage and are easy to reach for maintenance.
- Full-colour display panel, with clear information in operator’s own language and simple-to-learn functionality, advises on truck status, avoids misuse and protects your
- All-wheel synchronised steering, together with fork positioner, simplifies handling of long loads in narrow aisles.
- Multi-directional travel – forward/backward, sideways, diagonal and rotational – is complemented by an agile cornering mode and another for automatic transition between normal and lateral modes without stopping.
- Each load wheel has an independent steering motor, controller and brake system, and turns 360° in either direction, for unbeatable manoeuvrability, speed and precision.
- Responsive Drive System (RDS), featuring S4 mast handling, reacts to speed of accelerator pedal and hydraulic control movement, adjusting performance mode to meet operator’s changing needs.
- High-quality fork positioner, with inbuilt tilt function, has a wide spread to cope with a great variety of load dimensions
- State-of-the-art adjustable armrest combines anatomical support with free movement, perfect hand positioning and spring-force-optimised fingertip hydraulic controls for comfortable, low-effort operation.
- Dual joystick option separates functions such as clamp opening, to avoid accidental moves, and is especially useful if fingertip levers are too small for operation with gloves (or large hands).
- Intermediate step and ergonomic grab handles allow easy and quick ‘swinging’ transfers to and from a spacious, high-comfort cabin whose low seat position gives extra headroom.
- Driver comforts include fully adjustable seat and steering wheel, optimally shaped and angled pedals, and other intuitive, ergonomically arranged controls.
- Automatic aids include progressive steering, curve control and reduction of drive and reach speed with mast height, for smooth, safe and efficient driving.
- Lift height and load weight indicators are included as standard to encourage safe handling.
- Hydraulic braking is highly effective, allowing confident highspeed work, and requires little maintenance.
|MODEL||CAPACITY (kg)||LOAD CENTRE (mm)||ENGINE|
